Vortex Flow Meters – High-Accuracy Flow Measurement Solutions for Industrial Applications
Introduction
Vortex Flow Meters are among the most reliable and accurate flow measurement devices used across various industries, including oil & gas, chemical processing, power generation, water treatment, and food manufacturing. Designed to measure the flow rate of liquids, gases, and steam, vortex flow meters provide exceptional performance with minimal maintenance requirements.
What Are Vortex Flow Meters?
Vortex Flow Meters are velocity-based flow measurement instruments that operate using the Von Kármán vortex principle. When a fluid passes around a bluff body placed within the flow stream, alternating vortices are generated downstream. The frequency of these vortices is directly proportional to the flow velocity.
The meter detects these vortices using sensors and converts the signal into an accurate flow rate measurement.
Key Components of a Vortex Flow Meter
- Bluff body (shedder bar)
- Sensor detector
- Signal processing electronics
- Flow tube
- Digital display/transmitter
How Do Vortex Flow Meters Work?
The operating principle follows a simple process:
- Fluid flows through the meter body.
- The bluff body creates alternating vortices.
- Sensors detect vortex frequency.
- Electronic circuitry converts the frequency into flow rate data.
- The measurement is displayed or transmitted to a control system.
This technology allows accurate flow measurement without moving parts, making vortex flow meters highly durable and dependable.
Benefits of Vortex Flow Meters
High Accuracy
Vortex flow meters typically provide accuracy levels of:
- ±0.5% to ±1% for liquids
- ±1% to ±1.5% for gases and steam
Low Maintenance
Since there are no moving components, wear and tear are significantly reduced.
Versatile Measurement
Suitable for:
- Liquids
- Gases
- Saturated steam
- Superheated steam
Long Service Life
The rugged design ensures years of reliable operation even in harsh industrial environments.
Cost-Effective Solution
Lower maintenance costs and high reliability reduce overall operational expenses.
Features of Modern Vortex Flow Meters
Digital Communication Options
Modern meters support:
- HART Protocol
- Modbus
- Profibus
- Foundation Fieldbus
Temperature and Pressure Compensation
Advanced models automatically compensate for changing process conditions.
Wide Flow Range
Many vortex flow meters offer a turndown ratio of up to 20:1.
Real-Time Monitoring
Provides continuous process data for improved efficiency and process control.
Typical Specifications
- Accuracy: ±0.5% to ±1%
- Process Temperature: Up to 400°C+
- Pressure Rating: Up to ANSI Class 1500
- Pipe Sizes: DN15 to DN300+
- Output Signals: 4-20mA, Pulse, HART, Modbus
- Power Supply: 12-36 VDC
People Also Ask (FAQs)
1. What is a vortex flow meter used for?
A vortex flow meter is used to measure the flow rate of liquids, gases, and steam in industrial processes such as power generation, oil and gas production, and water treatment.
2. How accurate are vortex flow meters?
Most vortex flow meters offer accuracy between ±0.5% and ±1% for liquids and around ±1% to ±1.5% for gases and steam.
3. Can vortex flow meters measure steam?
Yes. Vortex flow meters are widely recognized as one of the best technologies for saturated and superheated steam measurement.
4. What are the advantages of vortex flow meters?
Major advantages include high accuracy, low maintenance, no moving parts, long service life, and compatibility with liquids, gases, and steam.
5. What industries use vortex flow meters?
Industries such as oil & gas, power generation, chemical processing, water treatment, pharmaceuticals, and food manufacturing commonly use vortex flow meters.
6. Do vortex flow meters require maintenance?
Maintenance requirements are minimal because the meter contains no moving mechanical parts that wear out over time.
Download Broucher
Flow Instruments PK is a dedicated flow measurement and process instrumentation, we specialize in supplying high-performance flow meters and industrial instrumentation solutions to a wide range of industries.
Vortex Flow Meters provide a dependable and cost-effective solution for measuring liquids, gases, and steam in demanding industrial environments. Their high accuracy, rugged construction, low maintenance requirements, and versatile application range make them a preferred choice across numerous industries. Whether you’re upgrading an existing process or implementing a new flow measurement system, a vortex flow meter delivers reliable performance and long-term value.
Related Products

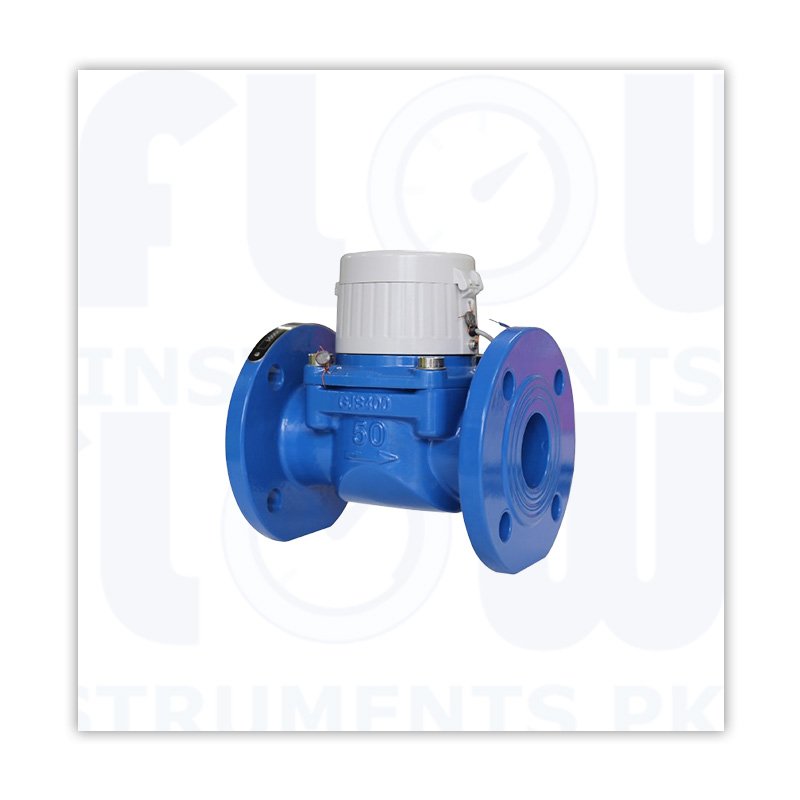

Woltman Water Meter
Multi Jet Water Meter
Vortex Flow Meter

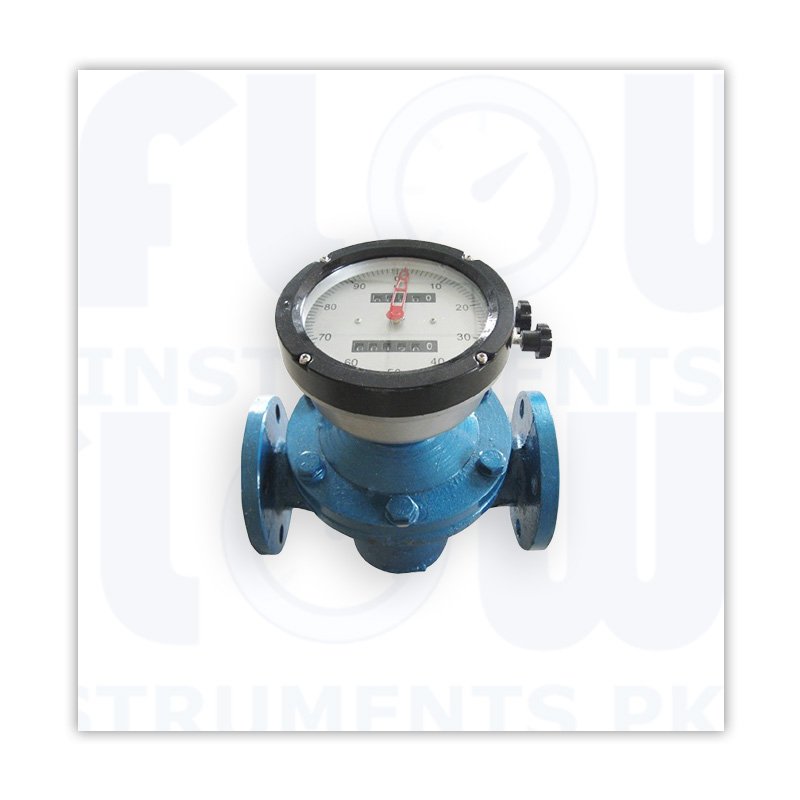

Diesel Flow Meter
